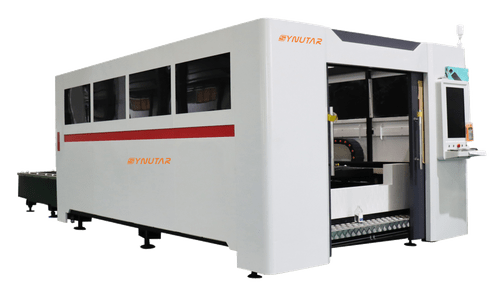

Exchangeable Table with Protection Cover Fiber Laser Cutting Machine
Laser Power: 1000W/1500W/2000W/3000W/4000W/6000W
Working area: 3000mm*1500mm/4000mm*2000mm/6000mm*2000mm
Characteristics of Machine:
Principle of laser cutting: it uses high-density laser beam passing through the laser head to focus the laser so that the metal can be melted rapidly, at the same time, with the help of the high-speed air flow coaxial with the beam, the molten material is blown away, so as to achieve the purpose of cutting.
Fiber Laser Cutting Machine Advantages:
√ Fast cutting speed
√ High photoelectric conversion rate, up to 40%
√ Thinner cutting seam, smaller thermal deformation.
√ Low using cost
√ Low power consumption
√ Long service life up to 100,000 hours.
Customer Benefit
With Synutar laser cutting and marking technology, customers will benefit a lot:
- Non-contact working won't deform the products.
- Fast working speed improves production efficiecy greatly.
- Cutting edge is smooth and bright.
- long lifetime, 100,000hours.
- Less consumables for laser cutting machine (nozzle, protection lens, ceramic ring).
- Easy to operate, the machine work after importing the design, no need any mold, save a lot of cost.
- It suitable for both small quantity or massive production.
Technical Parameters
| Machine model | SY-F3015CE/4020CE/6020CE |
| Laser wavelength | 1064nm |
| Max. Cutting power | 1000W/1500W/2000W/3000W/4000W/6000W |
| Working area | 3000mm*1500mm/4000mm*2000mm/6000mm*2000mm |
| X/Y axis repeated positioning accuracy | ±0.02mm |
| Max. positioning speed | 120m/min |
| Max. X/Y axis acceleration speed | 1.2G |
| Support graphic format | DXF etc(Support Auto CAD software,CorelDraw software) |
| Power consumption of machine | 10.7W~34.4KW(for 1000W ~6000W) |
| Power supply requirements | 380V, 50Hz |
Heavy Duty Machine Body
Adopts steel welding structure, and the crossbeam is made of iron plate welding and casting. After annealing, the stress is completely eliminated before rough machining, and after rough machining, vibration aging treatment is carried out before finishing, so as to ensure the long-term stability of the bed without deformation.
Control System
Cypcut control system, computer numerical control, powerful professional optical fiber laser control software, supporting Auto CAD, CorelDRAW software graphics and DXF / AI graphics format; fiber laser cutting machine special industrial control host.
Language is optional: Chinese, English and other languages

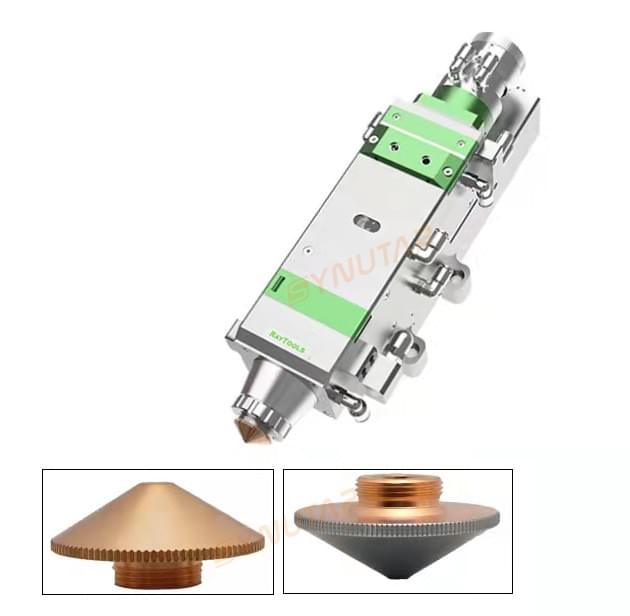

Laser Cutting Head
Raytools autofocus laser cutting head, Switzerland brand
nozzle: single layer, double layer
Applicable Materials
Stainless steel plate, carbon steel plate, aluminum alloy, brass plate, galvanized plate, nickel plate, manganese plate, titanium alloy and other metal plates.
Applicable Industry
Mechanical and electrical equipment, mechanical sheet metal, chassis cabinet, stainless steel products, decoration, kitchen and bathroom, lamps, automobile accessories, glasses, advertising signs, metal furniture, elevator, electrical appliances, metal external processing, etc
